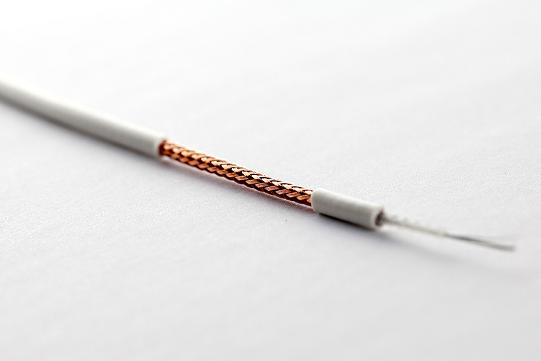

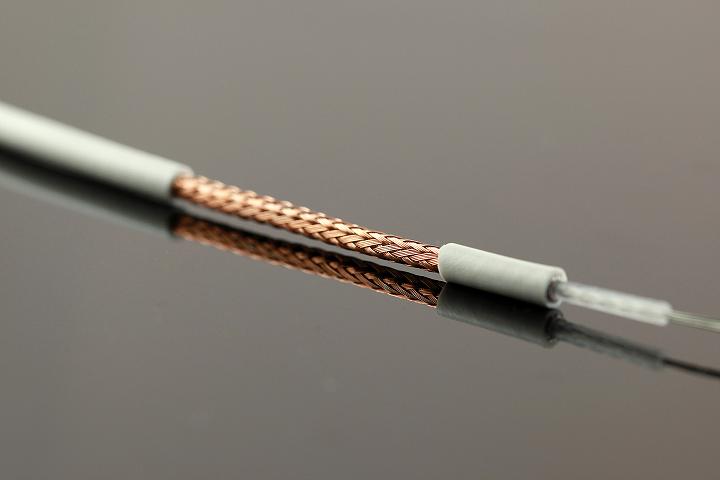

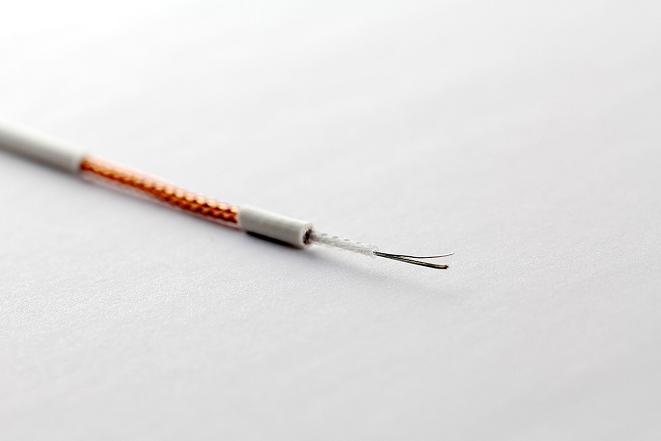

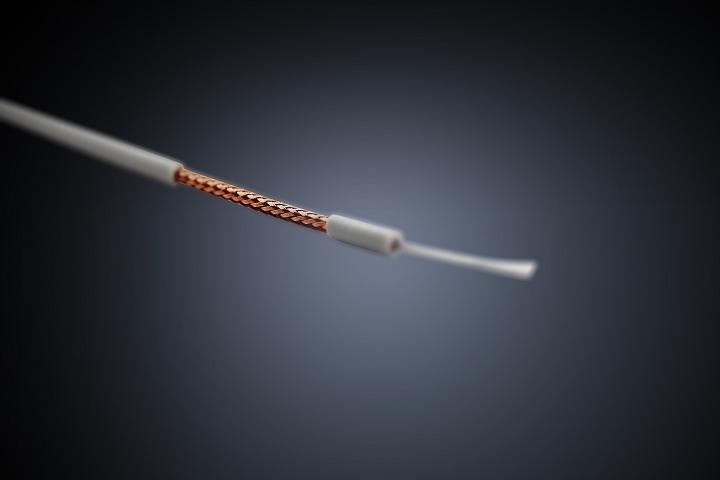

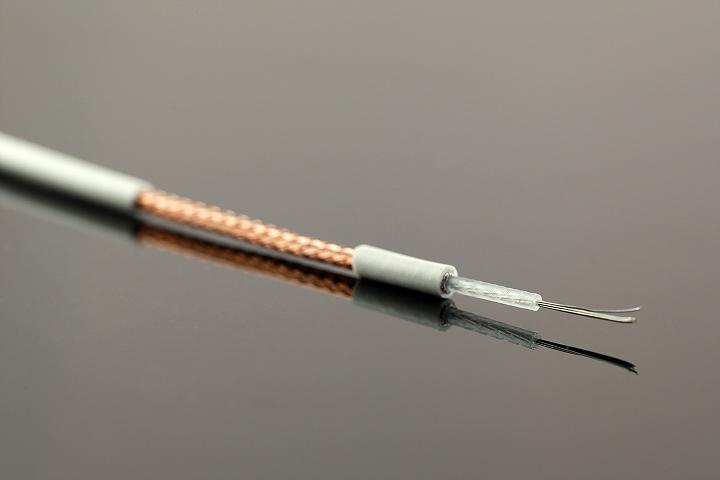

  • Name: RG174
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
RRG174
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 0.34cu+/-0.01 mm
NORMINAL INSULATION DIA. 1.95SPE+/-0.10 mm
NORMINAL JACKET DIA. 3.70+/-0.10 mm
NORMINAL CAPACITANCE 100+/-3 pF/m
NORMINAL IMPEDANCE 50+/-3 Ohm
VELOCITY OF PROPAGATION 66%
RETURN LOSS ≥20dB
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.0 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.

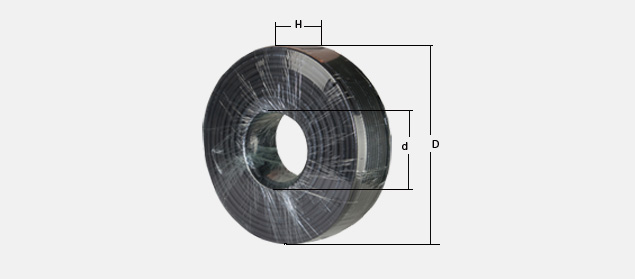

Hollow Circle
Spec. D/cm 15CM d/cm 6CM H/cm 6.1CM



Carton
Spec. a/cm 31CM b/cm 16CM h/cm 19.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
100 8.4 27.6
400 17 55.8
1000 27.4 89.9
