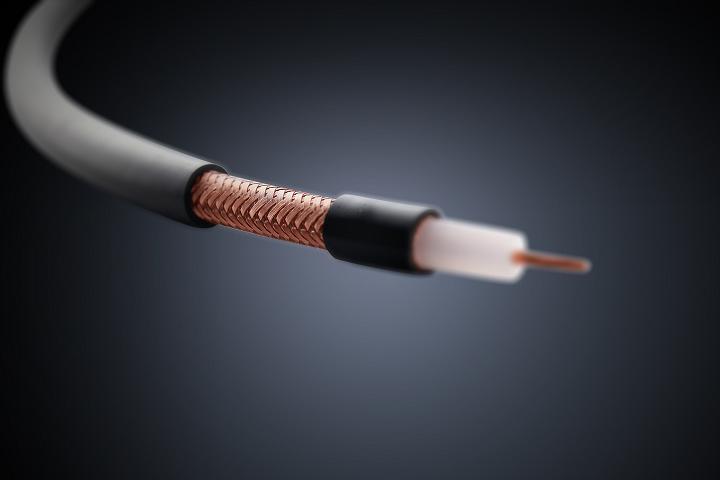

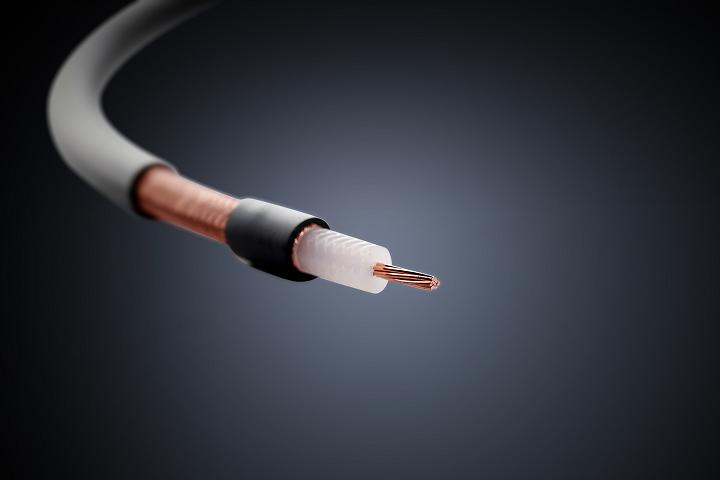

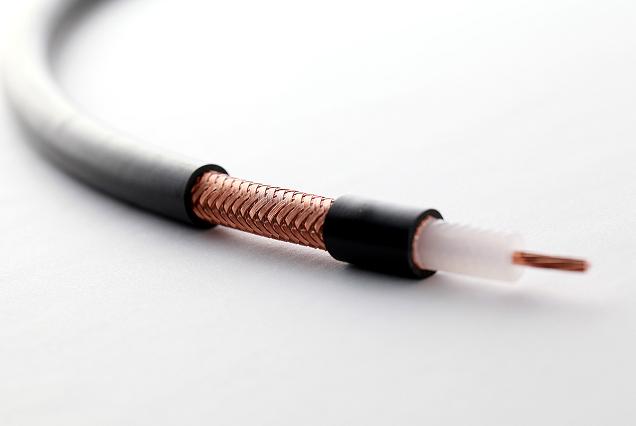

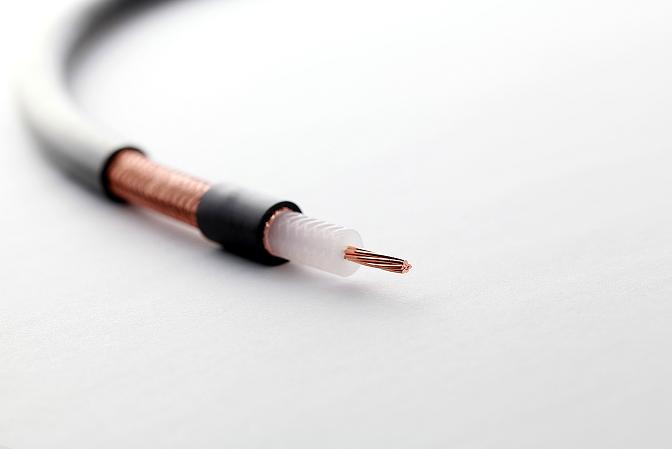

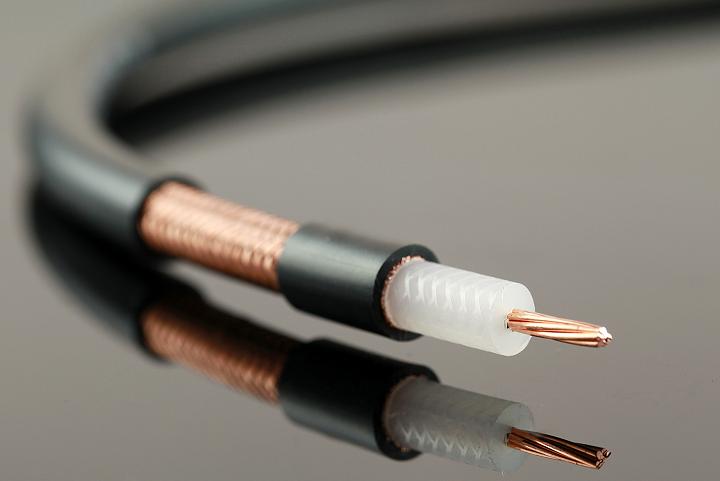

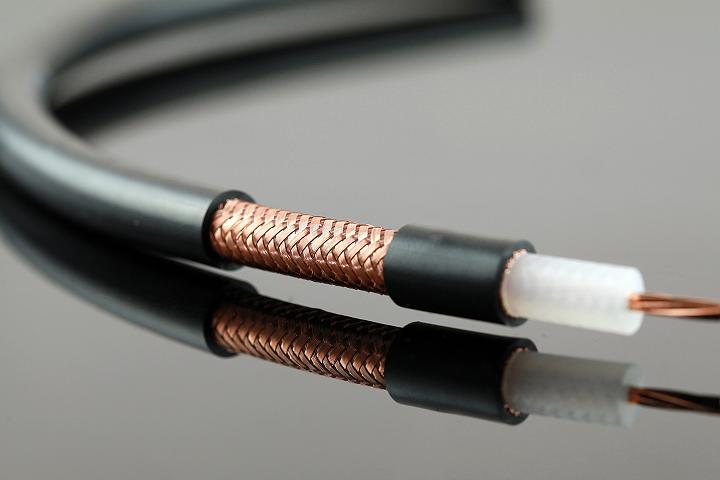

  • Name: RG213
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
RG213
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 7*0.75CU+/-0.01 mm
NORMINAL INSULATION DIA. 7.24SPE+/-0.10 mm
NORMINAL JACKET DIA. 10.3+/-0.20 mm
NORMINAL CAPACITANCE 100+/-3 pF/m
NORMINAL IMPEDANCE 50+/-3 Ohm
VELOCITY OF PROPAGATION 85%
RETURN LOSS ≥20dB
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.6 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
Wooden Spool
Spec. H/cm 39CM D/cm 36CM d/cm 15CM T/cm 1.1CM



Carton
Spec. a/cm 40CM b/cm 40CM h/cm 37.5CM
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
10 0.54 1.8
20 0.85 2.8
50 1.34 4.4
100 2.07 6.8
200 2.95 9.7
400 4.6 15.1
500 4.94 16.2
800 6.55 21.5
1000 7.47 24.5
