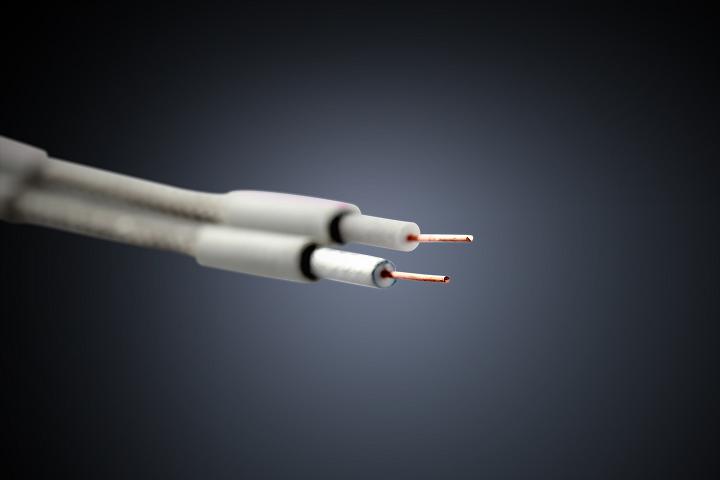

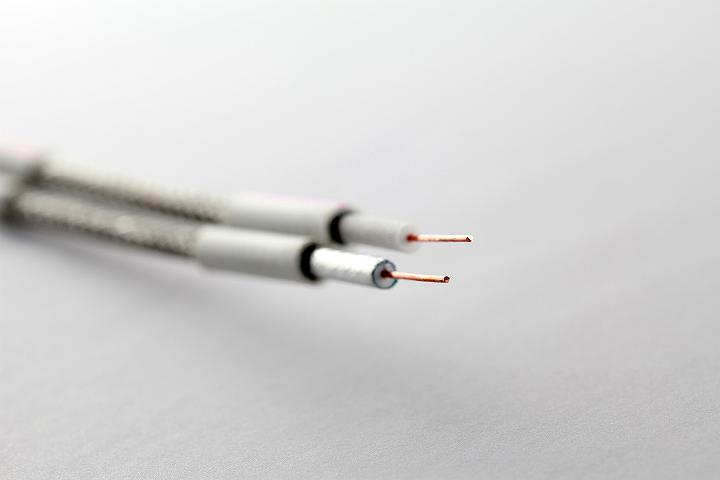

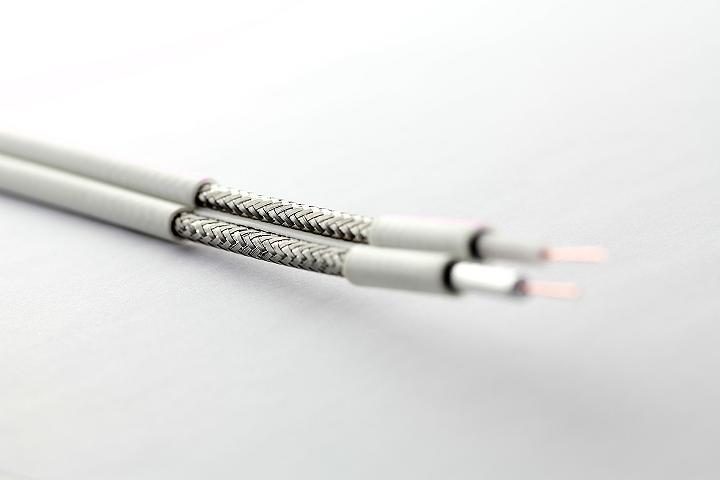

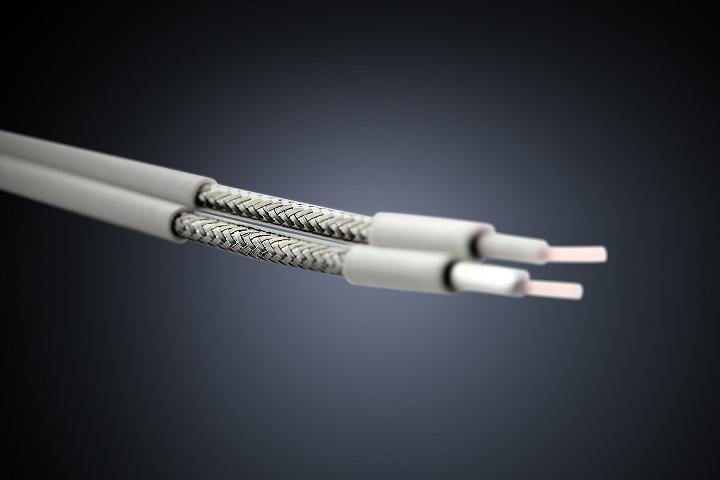

  • Name: RG59-2
Immediate Inquiry
*Email
*Content
Product Name
Your Name
Company
Tel./Fax
MSN/Skype
  • Specification
  • Packing
  • Electrical Properties
DUAL RG59
Article No:
TEST IS EXECUTED ON THE SAMPLE DRAWN AT
RANDOM,DETAILS ARE AS FOLLOWS
NORMINAL CENTRAL CONDUCTOR DIA. 0.81CCS+/-0.01 mm
NORMINAL INSULATION DIA. 3.66FPE+/-0.10 mm
NORMINAL JACKET DIA. 6.1+/-0.2 mm
NORMINAL CAPACITANCE 50+/-3 pF/m
NORMINAL IMPEDANCE 75+/-3 Ohm
VELOCITY OF PROPAGATION 85%
RETURN LOSS ≥20dB
INSULATION RESISTANCE(20 ºC) MΩ • km ≥5000
DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) ≥1.6 kV
ATTENUATION TESTED AT 68 ºF(20 ºC)
TESTED AT LENGTH 100m

FOR BEST ELETRICAL PERFORMANCE:
1.PRODUCTS SHOULD BE HANDLED WITH CARE.
2.STRONG ELECTROMAGENTIC FIELDS SHOULD BE AVOIDEO.
3.EXTREMELY HOT AND COLD ENVIRONMENTS SHOULD BE AVOIDED.
@  Frequency MHz dB/100ft(MAX) dB/100m(MAX)
5 0.86 2.82
55 2.05 6.73
187 3.6 11.81
211 3.8 12.47
250 4.1 13.45
300 4.45 14.6
400 5.1 16.73
500 5.7 18.7
600 6.23 20.43
750 6.97 22.87
865 7.52 24.67
1000 8.12 26.64
1200 8.96 29.4
1450 9.88 32.41
1800 11.8 38.72
2200 13.04 42.78
